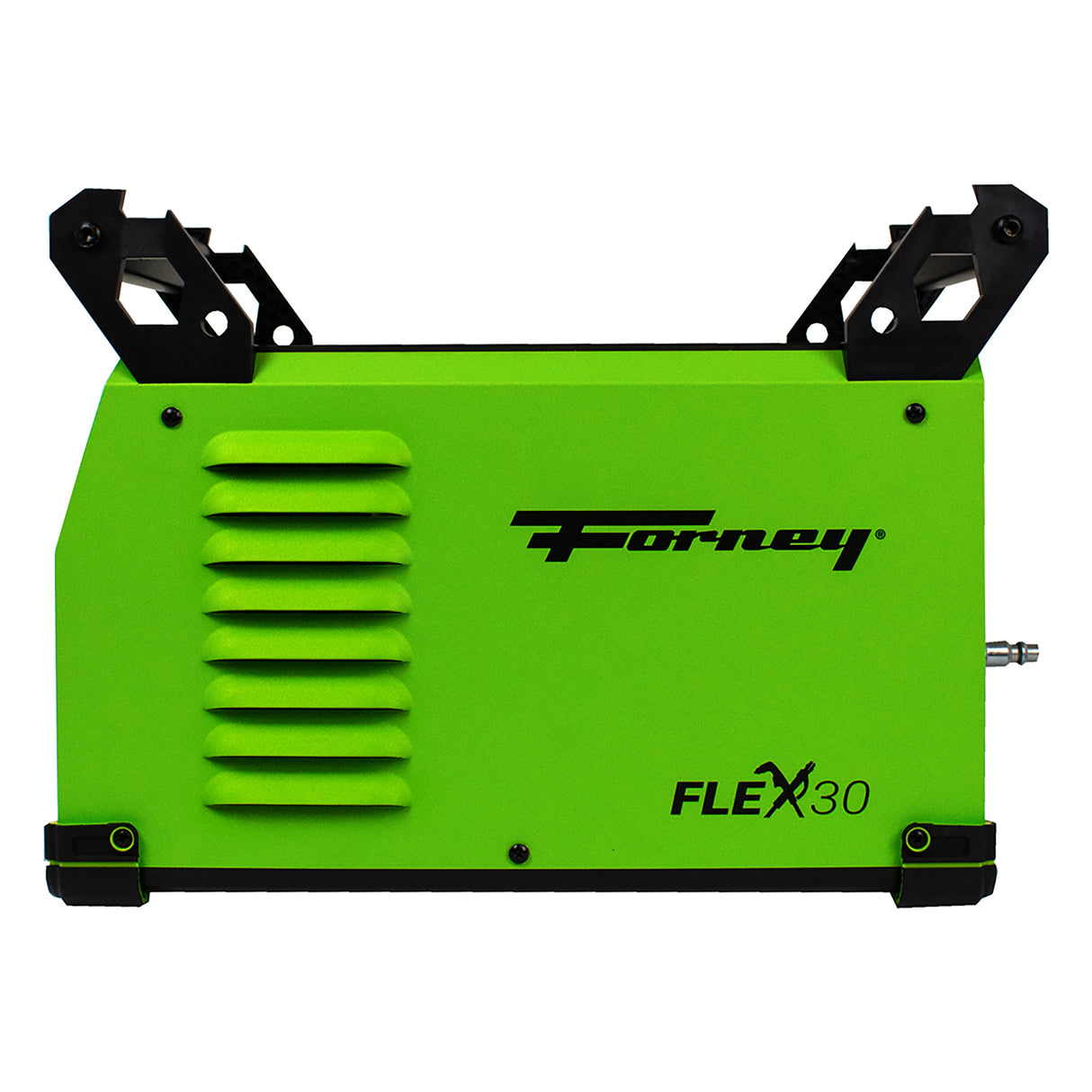

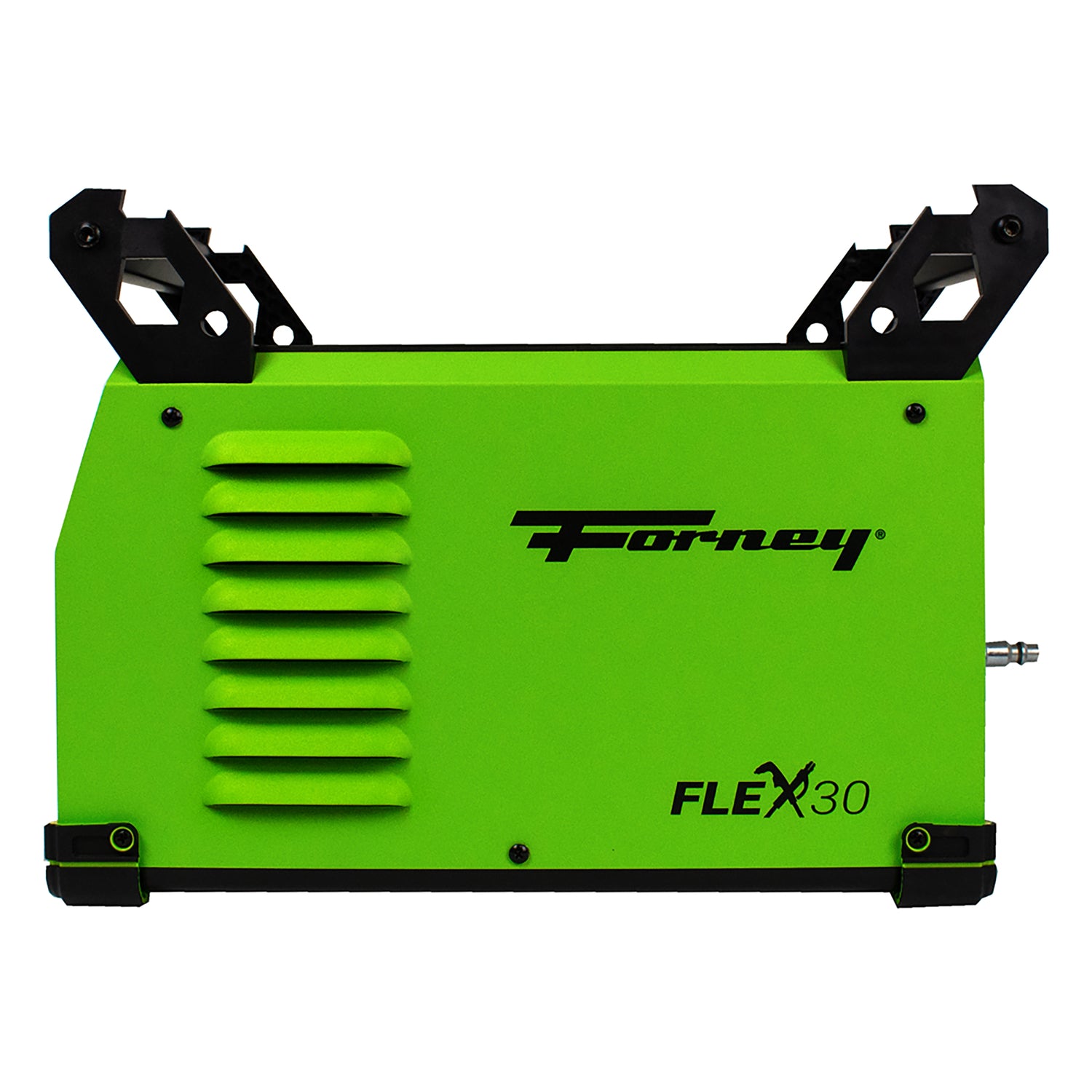

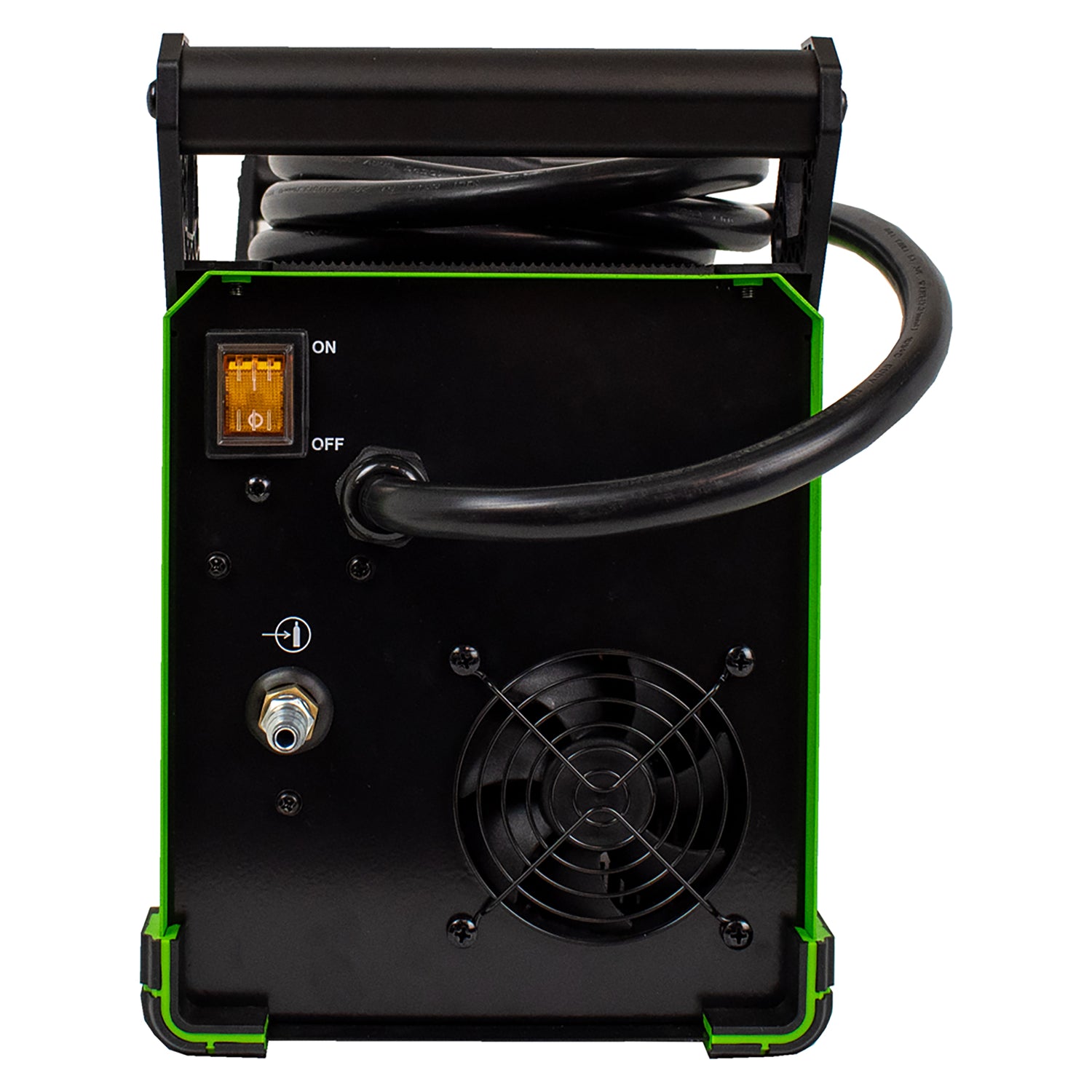

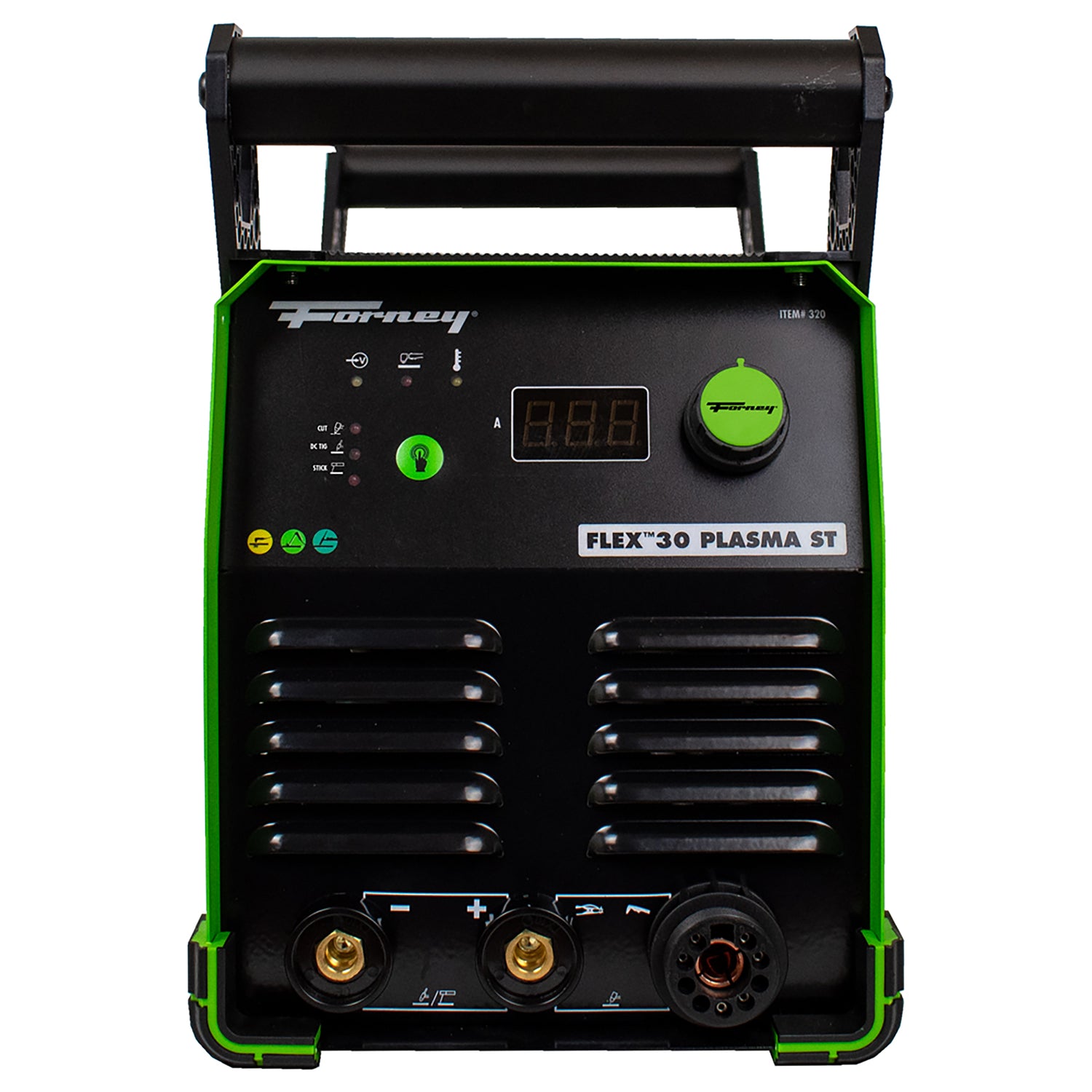

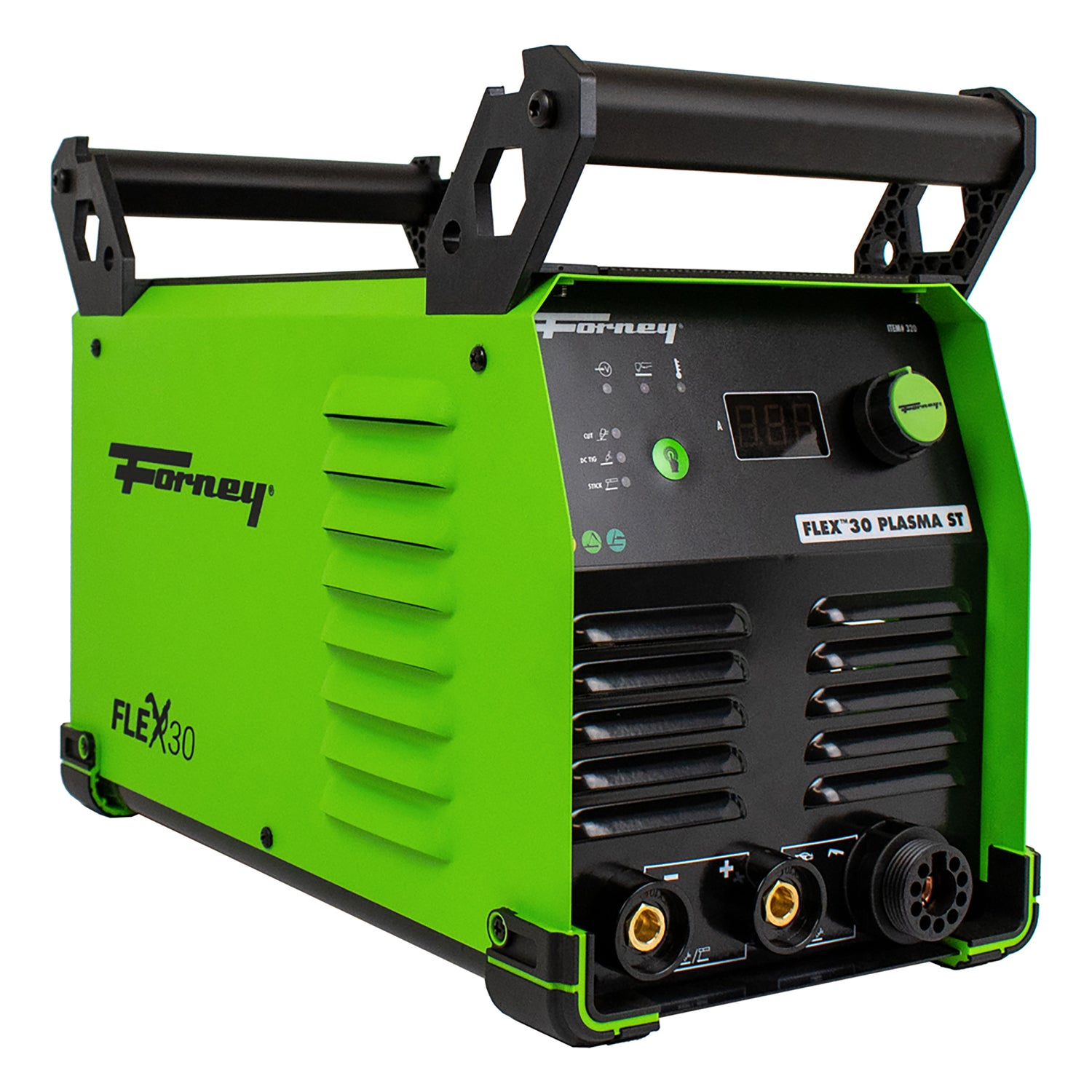

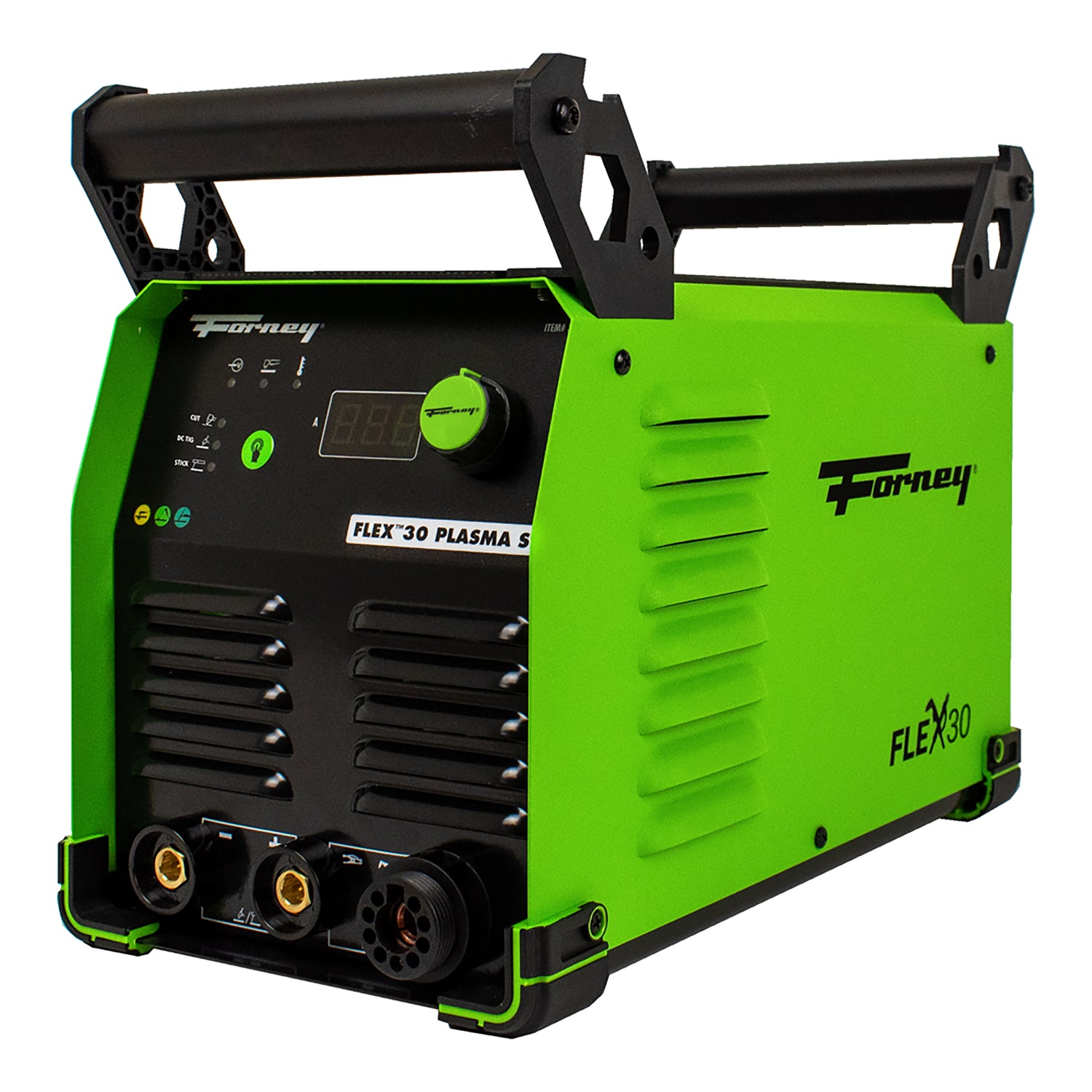

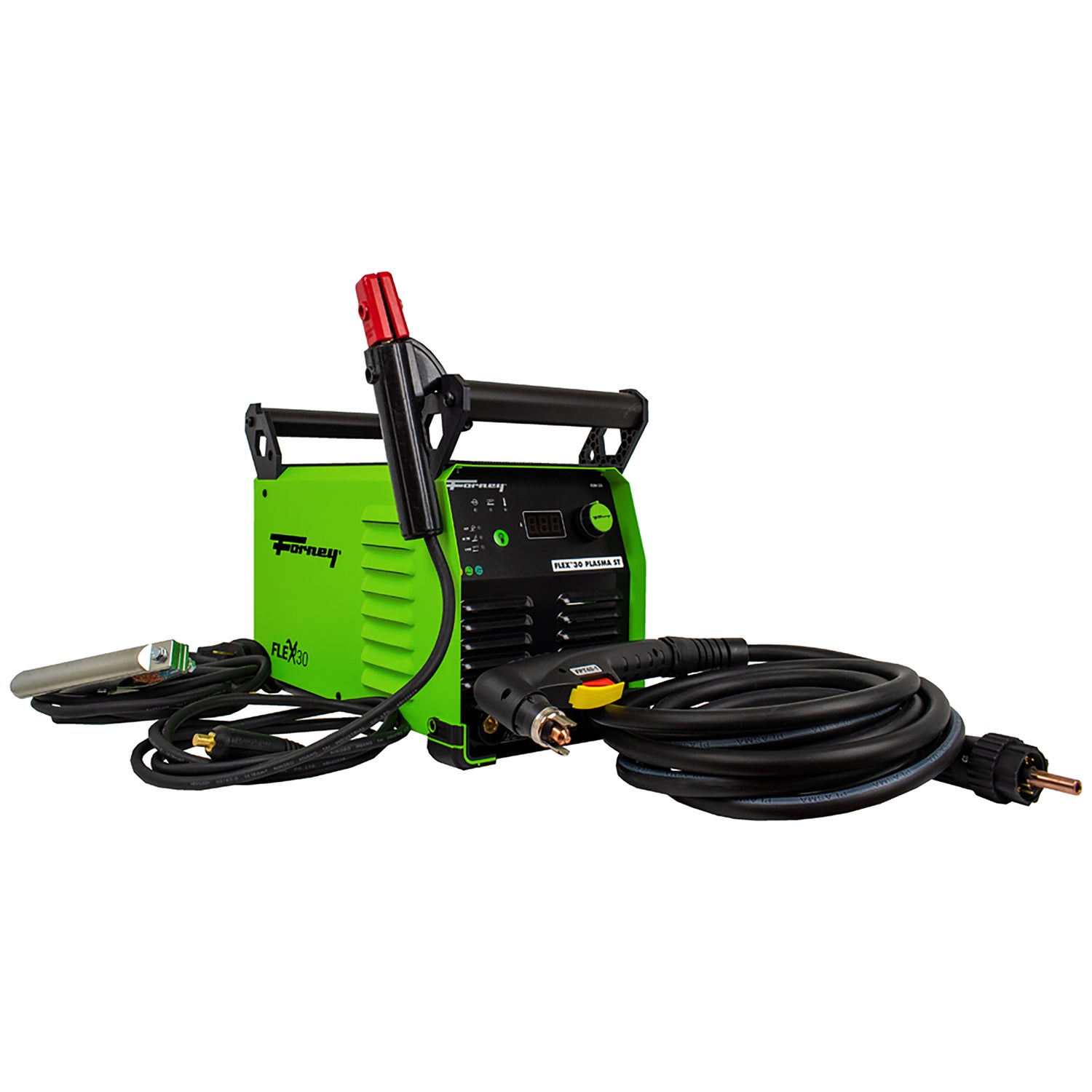

Forney Industries 320 Flex 30 Plasma Cutter and Stick/TIG Machine

The Forney Flex 30™ Plasma ST is an all-in-one welding and cutting machine! It’s portable, easy to use, generator-friendly, and features innovative inverter technology – making this one of the most efficient machines in the market. This powerful, dual-voltage plasma cutter and stick/TIG welder also allows you to work wherever 120V and 240V power is available. PROCESSES * Stick Welding (SMAW) * TIG Welding (GTAW) – Requires a TIG torch with a gas valve in the handle (sold separately) * Plasma Cutting SPECIFICATIONS * Lift Arc TIG capable. Requires TIG Torch (Forney ITEM# 85659). * Output Power (Welding): 120V @ 85A | 240V @ 160A (DC output only) * Output Power (Cutting): 120V @ 20A | 240V @ 30A * Input Voltage: 120V/240V * Electrode Diameter: Up to 5/32” * Plate Thickness: Up to 1/2” * Cutting Capacity: 1/2” clean cut | 5/8” sever cut * Duty Cycle (TIG): 120V: 30% @ 85A | 240V: 30% @ 160A * Duty Cycle (Stick): 120V: 30% @ 80A | 240V: 25% @ 160A * Duty Cycle (Plasma): 120V: 35% @ 20A | 240V: 60% @ 30A * Amperage Range (TIG): 120V: 10A-85A | 240V: 10A-160A * Amperage Range (Stick): 120V: 10A-80A | 240V: 10A-160A * Amperage Range (Plasma): 120V: 10A-20A | 240V: 10A-30A * Recommended Gas Supply Flow Rate: 4.5 CFM * Certification: CSA listed * Phase: Singl(more...)

• Input Voltage: 120V/240V
• Output Power (Welding): 120V @ 85A | 240V @ 160A (DC output only)
• Output Power (Cutting): 120V @ 20A | 240V @ 30A
• Welding Plate Thickness: Up to 1/2”
• Cutting Capacity: 1/2” Clean Cut | 5/8” Sever Cut
• Recommended Air Supply Flow Rate: 4.5 CFM
• Duty Cycle (Stick): 120V: 30% @ 80A | 240V: 25% @ 160A
• Duty Cycle (Plasma): 120V: 35% @ 20A | 240V: 60% @ 30A
• Phase: Single
• Certification: CSA Listed
