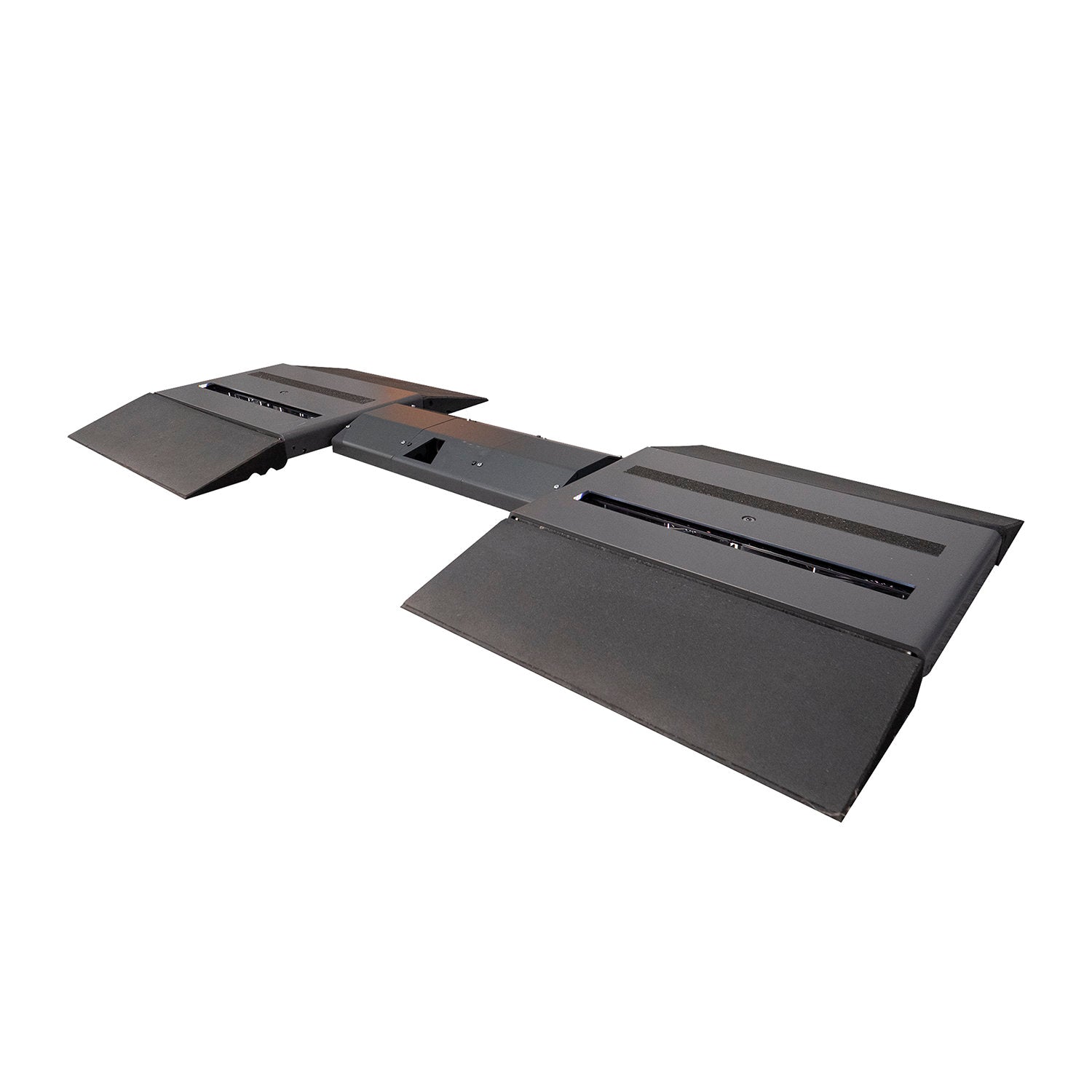

Coats 800ETOC Auto Tread Depth Scanner, Surface Mount

The Coats Tread Depth Scanner is a revolutionary touchless tire tread scanning system that automatically measures all four tires with precision and instant reporting. Using advanced LED camera technology with 0.01" accuracy, the system requires no moving parts, compressed air or lasers, ensuring low maintenance and reliability in any weather. Simply drive over the scanner at 5 mph or less and instantly receive comprehensive tread depth analysis across three positions on each tire. Built on Coats' 75+ year heritage, the Tread Depth Scanner helps shops streamline customer tire assessment and close undercar service sales with data-driven evidence. Available in flush-mount and surface-mount configurations, backed by a 1-year warranty on parts and 6-months labor.

• Automatically Scans Tire Tread as Vehicles Drive Over the Platform
• Provides Tread Depth and Wear Pattern Data with 0.01" Measurement Accuracy
• Uses 2 HD Cameras and LED Lights to Create a True 3D Reading and Detect Tire Wear Patterns
• Collects 60 Data Points per Millimeter Across a 17" Tread Read Area
• Maximum Scan Width: 17.7"; Maximum Vehicle Speed: 5 MPH; Cycle Time: 10 Seconds
• Integrated Camera Captures the Vehicle License Plate as it Passes without External Sensors
• Tire Health Reports Can be Displayed on a Monitor, PC, Tablet or Smartphone or Provided as a Printed Copy
• Wireless/LAN Communication; 100–240 VAC, 50–60 Hz Power
• Supports Up to 8,818-Lb Maximum Axle Weight; IP65-Rated Sensors; Operating Range: -13°F to 113°F
• Surface-Mount Design with Ramps; Footprint: 3.22" x 88.39" x 40.94"; No Moving Parts for Reduced Maintenance
