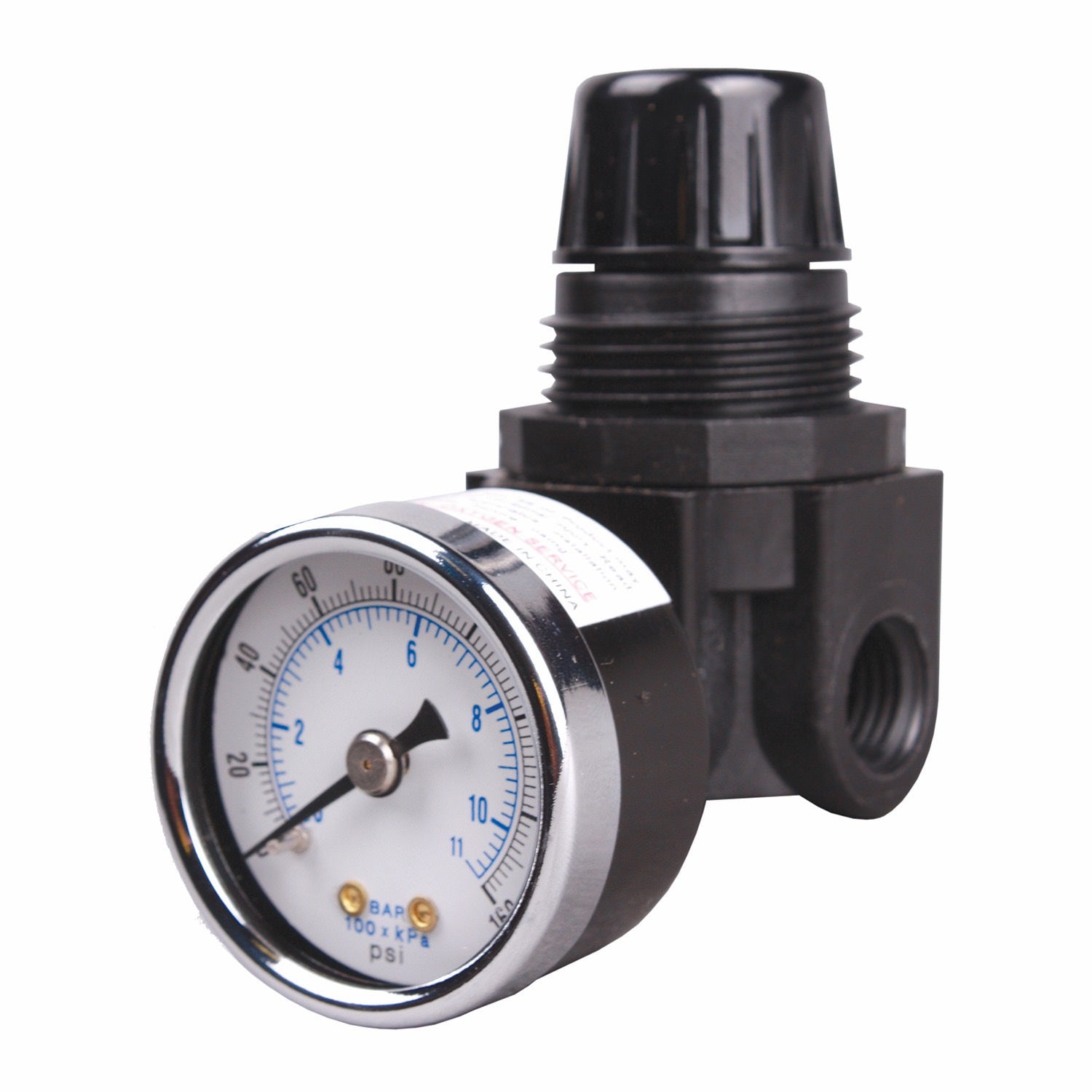

Arrow Pneumatics R262G 1/4" Mini Air Regulator with Gauge
The Arrow Pneumatics 1/4" Mini Air Regulator with Gauge provides precise pressure control for compressed air systems in a compact, lightweight design. Ideal for low-flow applications, pneumatic tools and equipment with limited installation space, this diaphragm-operated regulator features a durable nylon body and a flow capacity of up to 25 SCFM. The adjustable 5–125 psi pressure range and included gauge allow users to monitor and regulate air pressure for consistent performance. A 3-position non-rising adjustment knob allows users to adjust, lock or secure the pressure setting against tampering. The self-relieving design automatically vents excess downstream pressure, while the brass valve seat helps maintain stable pressure regulation. Replaceable internal components allow for servicing and extended product life.
- Compact, Lightweight Nylon Body for Low-Flow Compressed Air Applications
- 1/4" NPT Connections with 25 SCFM Maximum Flow Capacity
- Adjustable Pressure Range: 5–125 psi
- Maximum Inlet Pressure: 250 psi
- Diaphragm-Operated Design with Brass Valve Seat for Consistent Pressure Regulation
- Self-Relieving Design Automatically Vents Excess Downstream Pressure
- 3-Position Non-Rising Knob Allows Pressure Adjustment, Locking and Tamper Resistance
- Micro-Finished Valve Seat Helps Prevent Downstream Pressure Creep
- Includes Pressure Gauge for Monitoring Regulated Air Pressure
- Serviceable Design with Replaceable Internal Components
