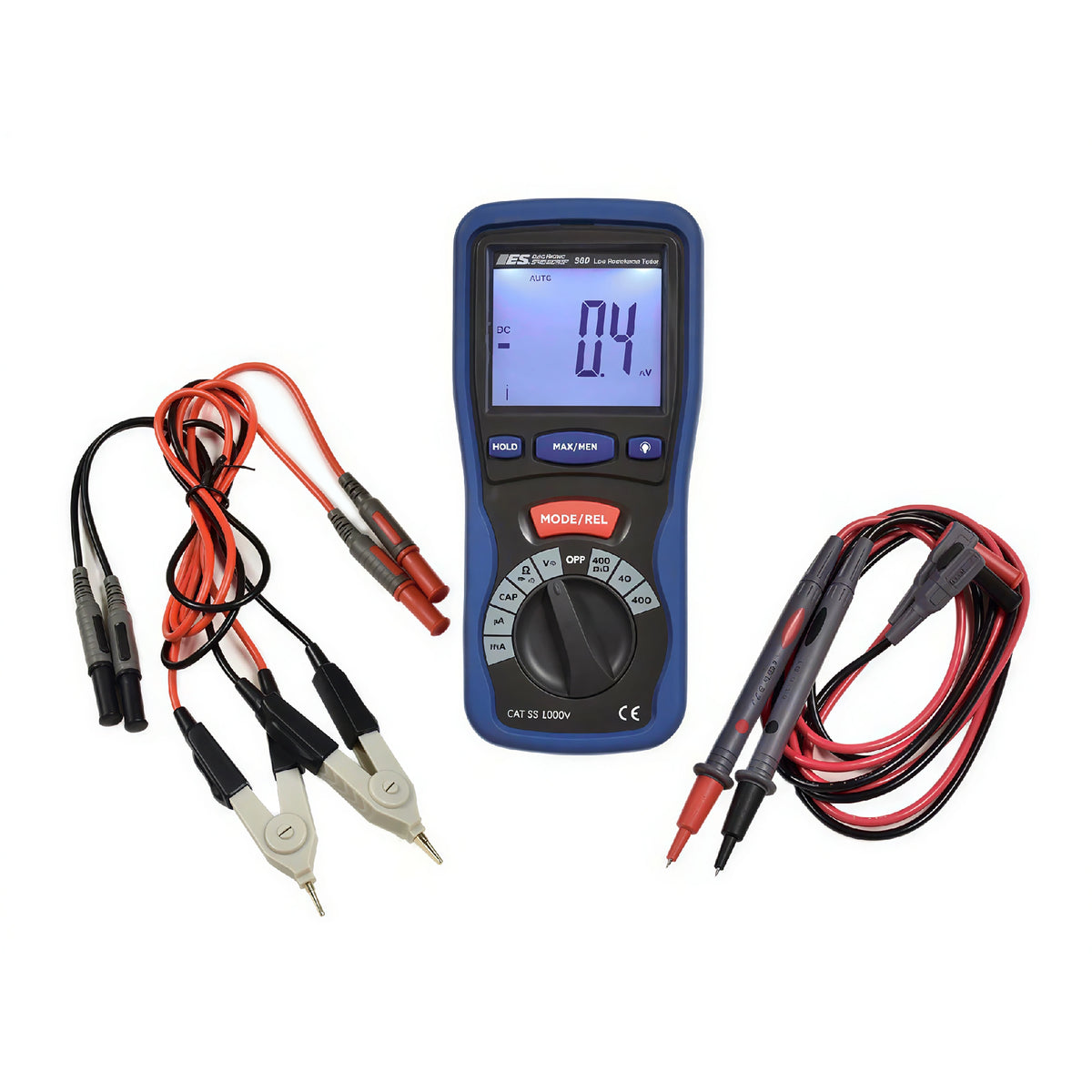

Electronic Specialties 560 Milliohm Meter

$359.99
Electronic Specialties  |  SKU: ESI560

The Electronic Specialties 560 Milliohm Meter checks Hybrid and EV stator windings for inconsistent or out of range resistance which leads to drivability problems. Using a milliohm meter is a critical diagnostic procedure for ensuring the integrity, efficiency and reliability of the electric motor's winding. In three phase stators, all phases should exhibit nearly identical resistance values. This is one of the higher failure rates in electric motors and 560 can help you diagnose it. 560 reads very low ohms accurately, using the supplied Kelvin test leads. Low Ohm resolution is 0.1 milliohm or .00001 Ohm. Unit is also full CATIII DVOM with Volts, Ohms, Capacitance and Milliamps capabilities with Min/Max. Also measures Diodes and has Continuity beep.

  • Meets IEC10101, CATIIII 1000V
  • Large Display with White LED Backlighting
  • Min/Max Capture of High/Low Readings
  • Over-Range Indication
  • Includes: (6) AA Batteries, Kelvin Test Leads, Standard Test Leads, Blow Mold Case
